ENERGAS supplies a set of equipment for upgrade of the gas treatment system for the CCGT-230 in Minsk

21 October 2019

Since 2009, a combined cycle gas turbine unit (CCGT-230) has been operating as part of Minsk CHPP-3 (branch of RUE Minskenergo). The power generating unit is supplied with fuel by a gas treatment system based on a booster compressor station (BCS) manufactured by VPT Kompressoren GmbH.



This system will be upgraded (expanded) – at the gas facilities site, another BCS, supplied by ENERGAS, will be additionally installed. The new BCS is made on the basis of a screw oil-filled compressor and is a block-modular process unit with a maximum integration of the components on a single frame. The station is placed in its own sound-absorbing shelter, equipped with all the necessary engineering systems, including life support systems and safety.

This equipment is the second most powerful among all 234 gas compressor stations of screw type, put into operation by ENERGAS specialists. The gas flow rate is 38,160 kg / h. Only BCSs for the Grozny TPP, which were launched this year, have greater capacity.

Unit compresses fuel to the required designed values (2.7 MPa) and feed it to the gas turbine of CCGT. Gas flow rate is controlled in the range from 0 to 100% of nominal. For this purpose, a special two-loop regulation system is applied. The first loop (control by the compressor spool valve) provides smooth, stepless capacity control in the range of 15 ... 100%, and to control capacity in the lower range it is combined with a gas recirculation system (second loop), which allows you to respond quickly and correctly on a sharp change in load during transient operating modes of conjugated turbine.



Fuel gas filtration system is composed of gas-oil filter separator of the 1st stage of purification and the coalescing (safety) filter of the 2nd stage. Residual content of impurities in gas at the outlet of the BCS is not more than 1 ppmw (mg / kg). A gas cooler is integrated into the process flow diagram of the compressor station, which ensures the separation and removal of the condensate as well as the stable maintenance of the fuel design temperature (+50°C).

For BCS pneumatic circuit, the supply set includes an auxiliary air compressor station (ACS).

The oil system of BCS uses ester synthetic oil of the new generation ESTSYN, which is specially created for units made based on screw compressors. The oil of ESTSYN CE100 brand ensures efficient operation, increases reliability and equipment life.

Current and new BCS for fuel gas will operate alternately, evenly distributing the operational load. When one station is turned on, the second one switches to the hot-standby mode. Their own control systems implement launch (and preparation for start), shutdown, and maintaining the optimal operation mode; they control the process parameters and gas pollution in the premises; they provide automatic protection and alarm system; they handle the parameters of the workflow and emergency events with the issuance of information.

ENERGAS equips compressor equipment with a two-tier automated control and regulation system (ACRS), which will combine local ACS of both BCS and integrate them into the automated processes control system of a combined-cycle power generating unit. Remote control (operator workstation, WKS) will be located in the control room of the CCGT.



The ACRS is made on the basis of modern microprocessor technology using advanced software and cross-connect equipment. Control from the central panel will be carried out in full, similar to the control "in site".

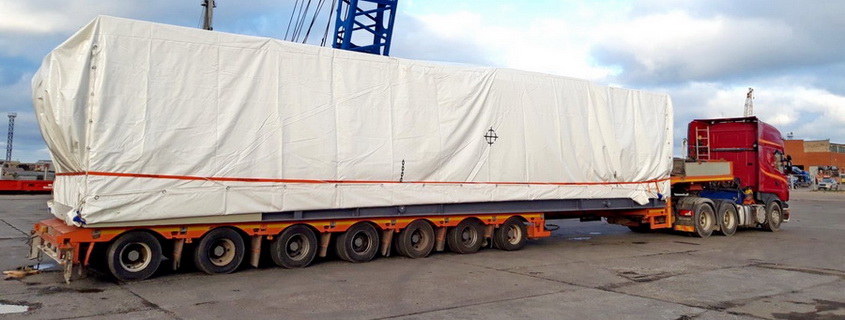

Currently, the additional compressor station is being transported to the Minsk CHPP-3 operation site. Before shipment, BCS underwent factory tests. The process unit is supplied with a high degree of prefabrication what significantly reduces the duration of the mounting works and pre-start activities.

Upgrade of the gas treatment system will increase the reliability of CCGT fuel supply and ensure uninterrupted operation of the combined-cycle power generating unit at all modes and under any climatic conditions. All the work on commissioning the BCS, VCS, and ACRS will be carried out by the specialists of ServicENERGAS LLC (part of the ENERGAS Group).



REFERENCE. In the power grid of the Republic of Belarus, Minsk CHPP-3 has been operating since 1951. Currently, its installed capacity is 542 MW. MCHPP-3 is a part of single production and process complex for the generation, transmission and distribution of thermal and electric energy.

CCGT-230 with an electric capacity of 222 MW and a thermal capacity of 136 Gcal/h was created on the basis of the GT13E2 gas turbine (Alstom), the HRSG/DP01.1 waste heat boiler (SES ENERGY) and the T-53/67-8.0 (UTW) steam turbine. The power generating unit efficiency is 52.5%. The main and reserve fuel is natural gas.
