SMALL GAS COMPRESSOR UNITS (SGCU) - SERIES OF COMPACT "SMALL" COMPRESSORS

It should be noted that the range of equipment produced and supplied by us is constantly expanding. For example, for today in the ENERGAS Group a transition has been made from the production of prototypes to the serial production of small gas compressor units - SGCU. This new current offer is already in demand.

Purpose of SGCU "ENERGAS”:

The SGCU is produced at the GC ENERGAS assembly site. The units are designed on special projects and have a set of advantages in their operating segment:

• transportation by standard trucks;
• low pre-start costs;
• minimum commissioning period;
• low operating and maintenance costs;
• affordable price.

The implemented engineering solution makes it possible not only to operate the units in a stationary mode, but also to consistently use one SGCU at different sites. I'll add that when you move the unit to another facility, you do not need to re-commissioning.

Our "small" compressors can operate at facilities without complex infrastructure. There is provided the way for connecting supply lines with flexible pipelines, which makes it possible to integrate SGCU without retrofitting the existing gas pipeline system. In this case, the compressor units are designed for long-term intensive operation and fully automated.

DESIGN FEATURES OF SGCU

Main design features of compact units are the following:

• simplicity and reliability of design;
• small dimensions and compactness of the elements;
• ability to operate with minimal capacity;
• simplified control and monitoring algorithm;
• optimized oil system.

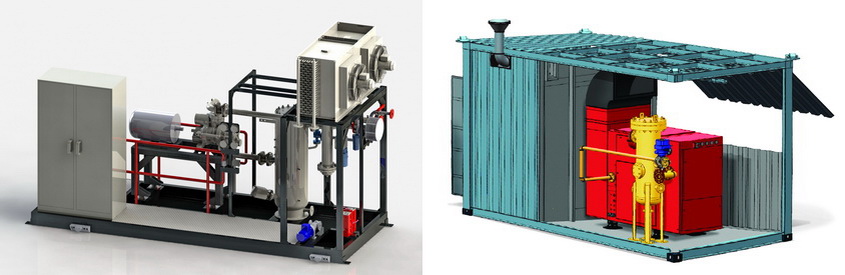

Small gas CUs are manufactured and supplied, as a rule, in two versions: 1) intra-shop version on an open frame; 2) packaged version.

Let us consider in more detail the second version, more common in practice.

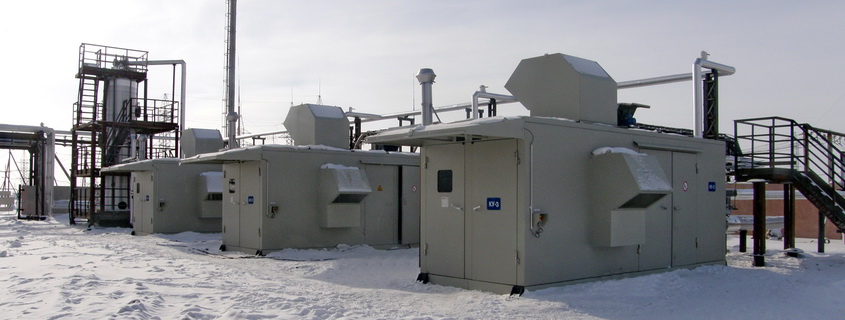

The packaged SGCU is the unit of maximum prefabrication level (availability factor on delivery> 98%), mounted in a shelter to protect against precipitation.

CU has the minimum necessary configuration and is equipped only with equipment that provides high reliability and long trouble-free operation. This makes it possible to keep the dimensions of the shelter equal to a standard twenty-foot sea container (6100 x 2440 x 2590 mm) with a total weight of about 4,000 kg.

This advantage makes the SGCU easy to transport with standard trucks and allows quick installation and start-up of the unit at operation site.

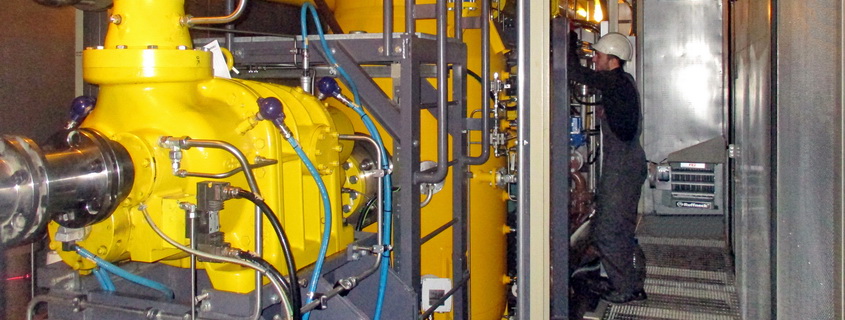

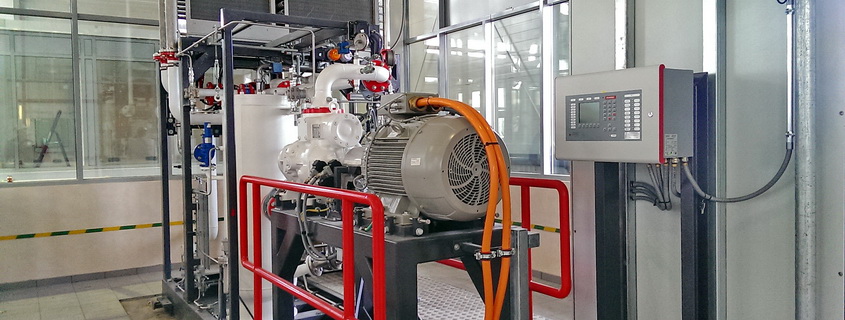

Compressor unit. The main element of the unit is a screw oil-filled compressor; the motor is used as a drive. The engine also performs the function of regulating the capacity of the CU by means of a frequency converter, which significantly reduces electricity costs.

Compressor unit - compressor and drive - is located inside its own casing, equipped with an electric air heater. This provides the necessary operating parameters in the shelter and reduces operating costs.

The special design of the unit makes it suitable for operation in severe climatic conditions, without the provision of additional safety and life support systems.

Filtration system. In addition to the compressor unit, a highly effective input scrubber is placed in the shelter, it is equipped with the necessary measuring and monitoring equipment, as well as a condensate drainage subassembly.

A two-stage coalescing filter is designed to remove solid particles and liquid fractions from the gas stream. The degree of gas purification reaches 100% for contamination of more than 20 microns and 99.98% for impurities of 10 ... 20 micron size.

It is possible to quickly replace filter elements. As a result, the system ensures gas compliance with the established design parameters.

Control system. To control the compressor unit, there is a compartment that is integrated into the CU module and separated from the process part by a gas-tight fire-resistant partition. Inside the compartment there is a cabinet with a local control panel, as well as all electrical and control components and safety equipment of the control system. Monitoring and control is carried out from the local panel or from upper level ACS of the facility (if any).

Thus, the SGCU does not require specially dedicated personnel and is completely controlled by its own logic controller located in the control cabinet. The frequency converter of the main motor is also mounted in the control cabinet.

Oil system. The design of the compressor requires feeding of lubricating oil (to ensure proper sealing, lubrication and cooling of the working cavity) with discharge pressure. This feature eliminates the use of an oil pump and ensures a long service life of the oil system.

Due to the small size of the compressor unit and the use of special cartridges in oil filters, oil charging and its consumption are so small that they allow the CU to operate literally on one barrel of oil for 10 years.

Drives and cooling. The use of electric actuators in small CU for the provision of process procedures makes it possible to do without connecting an additional external source of compressed air.

Air cooling of the compressor unit elements eliminates the closed cooling circuit, and this, in turn, greatly simplifies and facilitates the design of the unit.

PRE-START PROCEDURE AND MAINTENANCE

The units pass mandatory preliminary (factory) tests with the participation of representatives of the customer, which checked the operability of all the main elements - process, compressor, electrical equipment. There are tested automated control system, oil system, valve actuation, integrity of cable lines, density and tightness of control units.

In general, each SGCU is a completely autonomous system, ready for use, and requires only the supply of electricity, the installation of a cooling unit and connection of gas communications.

Small CUs do not require a special foundation - only an even concrete pavement and external connections are needed. Unique designs used in the design significantly reduce the amount of erection and commissioning works.

In the period between adjustment and a 72-hour integrated operability check in the structure of the facility, ENERGAS specialists conduct their own (individual) testing of equipment lasting from 8 to 24 hours.

At the stage of preparation for start-up, our service engineers carry out training of operating personnel, and in the course of work - maintenance of the units in accordance with the schedule agreed with the customer. The simplified design of the SGCU reduces the number of serviced elements and the duration of maintenance.

If necessary, specialists carry out upgrade of CU, as well as current or major repairs.

In Moscow and Surgut mobile engineering and technical groups of ENERGAS are based, there are also warehouses of original spare parts. This makes it possible to conduct timely planned activities at the facilities, promptly respond to requests in case of emergencies, promptly and in full supply components and consumables.

OPERATIONAL LIFE AND RELIABILITY

Compressor units are designed and manufactured for intensive use. Experience shows that with proper operation and timely maintenance, the operational life and reliability of the units exceed the values given in the table.

CU failure interval	14 000 hours
ACS CU failure interval	25 000 hours
Overhaul interval	40 000 hours
Assigned life (operational life)	20 years
Operating reliability	99 %

In general, the small gas compressor units "ENERGAS" are guaranteed to meet the existing and prospective process needs of various facilities of the fuel and energy complex and other industries.
